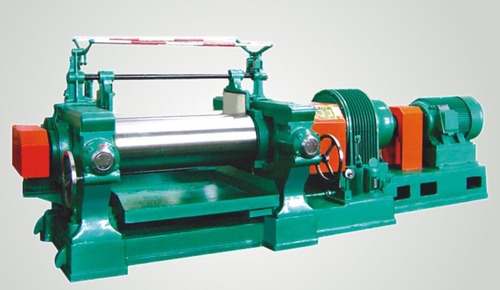

Two Rollers Rubber Sheet Making Machine

Two Rollers Rubber Sheet Making Machine
Two Rollers Rubber Sheet Making Machine
Product Code : RM-01
Brand Name : QHMCL
Product Description

Two Rollers Rubber Sheet Making Machine



Owing to its optimum performance and easy to use features, this Two Rollers Rubber Sheet Making Machine is widely used in rubber industries. This machine is suitable to form rubber sheets of specific thickness by pressing mild rubber between the rollers. At our modern production unit, this machine is manufactured under the supervision of our skilled professionals by utilizing pristine grade components with the help of modern techniques. Moreover, the provided Two Rollers Rubber Sheet Making Machine can be availed from us at the most budgeted rates.

Key Features:

  • Hassle free performance
  • High frequency
  • Power efficient
  • Safe and reliable
  • Low maintenance
  • The speed reducer is the hard-tooth surface gear reducer of class 4 precision,which is durable and it makes very low noise.
  • This machine is equipped with an emergency brake device. When there is an emergency, just push the emergency stop button, the machine will stop immediately.
  • This machine have a feature of overload protection device to prevent the main components from being damaged.
  • The base of this machine made of whole framework, which is very easy to install.
  • This machine has a special seal structure with great design which can eliminate the leaking phenomenon of lubricating oil

Technical Specifications:


Model

XK-250

XK-400

XK-450

XK-550

Roller diameter (mm)

250

400

450

550

Roller working length(mm)

680

1000

1200

1500

Front roller working speed (m/min)

14.2

24.2/21.5

27.3/24.3

28.3/29.2

Speed ratio of front & rear roller

1:1.21

1:1.27

1:1.27

1:1.29

Max.roller gap (mm)

8

10

10

15

Nip adjustment

Manual

Manual

Manual

Manual or electric

Batching capacity (kg)

10-15

25-35

30-50

50-60

Main motor power (kw)

15

45

55/75

90/110

Main motor revolving speed(r/min)

980

980

980

740/980

Gear box ratio

45

40/45

40/45

35/45

Machine dimension (mm)

3400x1300 x1600

4400x2000 x1900

5000x2200 x2000

5500x2300 x1800

Machine weight (kg)

4200

9000

11500

20000
